    NS2, Germany & the EU Solidarity Mechanism

Summary

Analyst Thierry Bros considers the impact that Nord Stream 2 will have on Europe's gas markets and the implications for EU security of supply and import dependency.

by: Thierry Bros

Posted in:

Natural Gas & LNG News, Europe, Expert Views, Premium, Corporate, Import/Export, Political, Ministries, Intergovernmental agreements, Infrastructure, , Nord Stream Pipeline, Nord Stream 2, OPAL, News By Country, EU

NS2, Germany & the EU Solidarity Mechanism

During his visit in Brussels, in July, the US president Donald Trump made some harsh comments about Nord Stream 2. As this is a very divisive issue in Europe, let’s try to look at public data and imagine how Europe will be supplied once Nord Stream 2 is on line.

Today’s situation

The EU's dependency on Gazprom for its gas supply is something most analysts agree on and was around 33 to 34% in 2017. Even if the northwest European market is liquid and well interconnected it is always interesting to try to have a country-by-country view. But this split on a country basis is more difficult as data seems to be inconsistent between what is reported on a country level and what Gazprom Export[1] reports. For consistency it seems obvious to use Gazprom Export data that provides the full split on a country basis rather than domestic administrations' data, where each country has different methodologies. By doing so, the split is as follows:

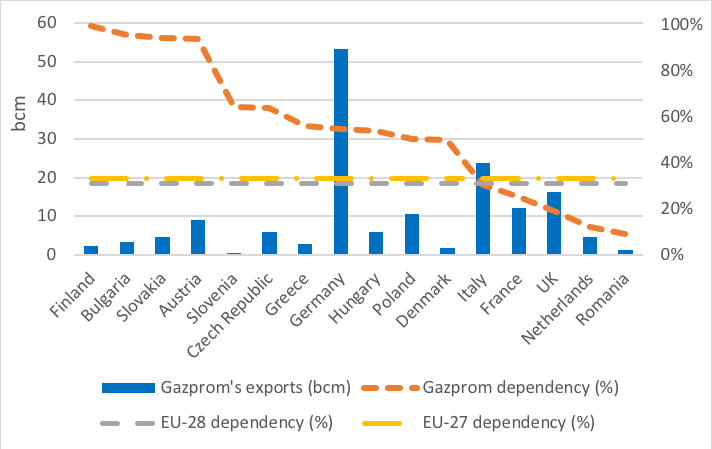

2017 Country and EU dependency on Gazprom



Source: Gazprom Export, BP Statistical Review, thierrybros.com

The German data is a case of inconsistency: Bafa reported[2] (in German) Russian imports until 2015 but ‘for data protection reasons, imports are no longer reported by country of origin’. So, in 2015, Bafa reported 32%, while using Gazprom Export data we achieved then 53%! Since then, Nord Stream 1 has been operating at much higher load factor while Dutch Groningen has been severely cut leading to Gazprom exporting an additional 8bn m³/yr, hence German dependency on Russian gas increasing to 55% using our methodology.

What if?

Let’s now, with this data, imagine a fictional 2021 scenario when Nord Stream 2 is in operation, assuming:

  • Gazprom fully uses Nord Stream 2 (55bn m³/yr) as it is already doing for Nord Stream 1

  • Gazprom agrees to keep 50bn m³/yr volumes transiting via Ukraine (compared with 77bn m³ in 2017) to please the EU Commission which might otherwise have the power to stop flows in Nord Stream 2[3] (as it did in capping the flows in the early part of Nord Stream 1).

  • Gazprom maximises its revenues by:

    • Rerouting 27bn m³/yr away from Ukraine for its Austrian, Dutch, French and German partners.

    • Selling the additional 28bn m³/yr in Germany to avoid transport fees inside the EU

Under this fictional 2021 scenario, Nord Stream 2 transports 55bn m³/yr and Gazprom exports increases between 2017 and 2021 by 28bn m³/yr[4], in line with Gazprom available spare production capacity (83bn m³ in 2017) and reroutes 27bn m³/yr away from Ukraine. We also assume demand stays the same in each EU country.

This means that:

  • Germany gets 28bn m³/yr extra gas

  • All other countries get the same amount of gas with Austria, France and Netherlands being supplied more by Nord Stream 2 instead of via Ukraine.

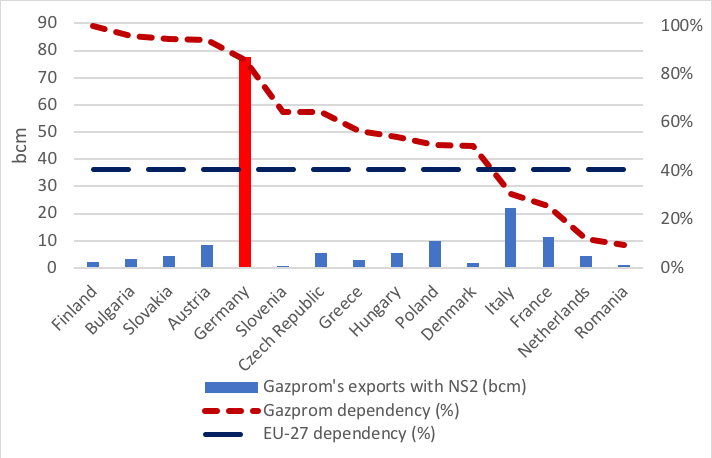

Fictional 2021 scenario



Source: thierrybros.com

We then end up with a EU-27 dependency of 41%. This starts to be a high stake and could be detrimental for a competitive market level playing field[5] but the major issue is about the EU solidarity mechanism[6]. An EU insurance policy can only work if every country follows the rules. For example, the Italians, the Greeks, the Spanish, the French are forced to pursue unpopular budgetary tightening measures to meet the Maastricht targets even if they would much better enjoy spending the hard-earned German euros!

To help prevent potential gas supply disruptions and respond to them if they happen, EU legislation created common standards and indicators to measure serious threats and define how much gas EU countries need to be able to supply to households and other vulnerable consumers. In 2017 a new Security of Gas Supply Regulation introduced the solidarity principle: EU countries must help each other to always guarantee gas supply to the most vulnerable consumers even in severe gas crisis situations. The European Union Agency for the Co-operation of Energy Regulators also recommends in its Gas Target Model[7] that EU Member States should:

  • have at least three distinct origin sources (defined as gas-producing countries or countries hosting a liquid hub from where gas is purchased);

  • have a market concentration, as measured by the Herfindahl-Hirschman Index (HHI)[8], lower than 2,000;

  • have the capacity to meet yearly demand without their largest upstream supplier.

So, if Germany (the biggest EU-27 gas market), that already doesn’t fully follow those rules, becomes 86% dependent on a single supplier (with an HHI then above 7,400), would it be fair for others EU citizens to reduce their gas consumption if an unexpected event was impacting Nord Stream to allow the vulnerable Germans not to freeze in the depths of winter? If Germany does not follow the EU rules ahead, it should not be able to ask its neighbouring member states for help in case of a major problem.

To allow Nord Stream 2 to go ahead, on top of a minimum amount of Ukrainian transit that the EU wants, the existing EU rules must be fully enforced and the Gas Target Model must be fully implemented. The US president, Donald Trump, made in fact, a very clever comment in Brussels, showing that Europe must have clear, simple targets and enforce them unless our different confusing policies start to be not only incomprehensible for him but also, more importantly, for EU voters...



Thierry Bros

Advisory Board Member Natural Gas World

18 July 2018



[1] http://www.gazpromexport.ru/en/statistics/

[2] http://www.bafa.de/DE/Energie/Rohstoffe/Erdgas/erdgas_node.html

[3] The Russian government has during the EU-Russia-Ukraine Berlin talks on 17 July 2018 already acknowledged the need to continue to use Ukrainian grid for transiting gas to the EU. We believe a 50bn m³/y could be something acceptable by both Russia and the EU.

[4] As we didn’t assume any demand growth during this period, in this scenario, Gazprom pipe replaces fully the Groningen cut (-12bn m³/yr), the Algerian pipe exports drop (-6bn m³/yr as domestic demand grows and supply stays the same) and displaces some other pipe and LNG (-10 bn m³/yr) which is consistent with a tight LNG market.

[5] https://www.oxfordenergy.org/wpcms/wp-content/uploads/2018/01/Reflection-on-the-Baumgarten-Gas-Explosion-Comment.pdf

[6] https://ec.europa.eu/energy/en/topics/imports-and-secure-supplies/secure-gas-supplies

[7] https://www.acer.europa.eu/Events/Presentation-of-ACER-Gas-Target-Model/Documents/European%20Gas%20Target%20Model%20Review%20and%20Update.pdf “Market health” metrics are disclosed page 22

[8] HHI is a commonly accepted measure of market concentration and is calculated by squaring the market share of each firm competing in the market and then summing the resulting numbers.
